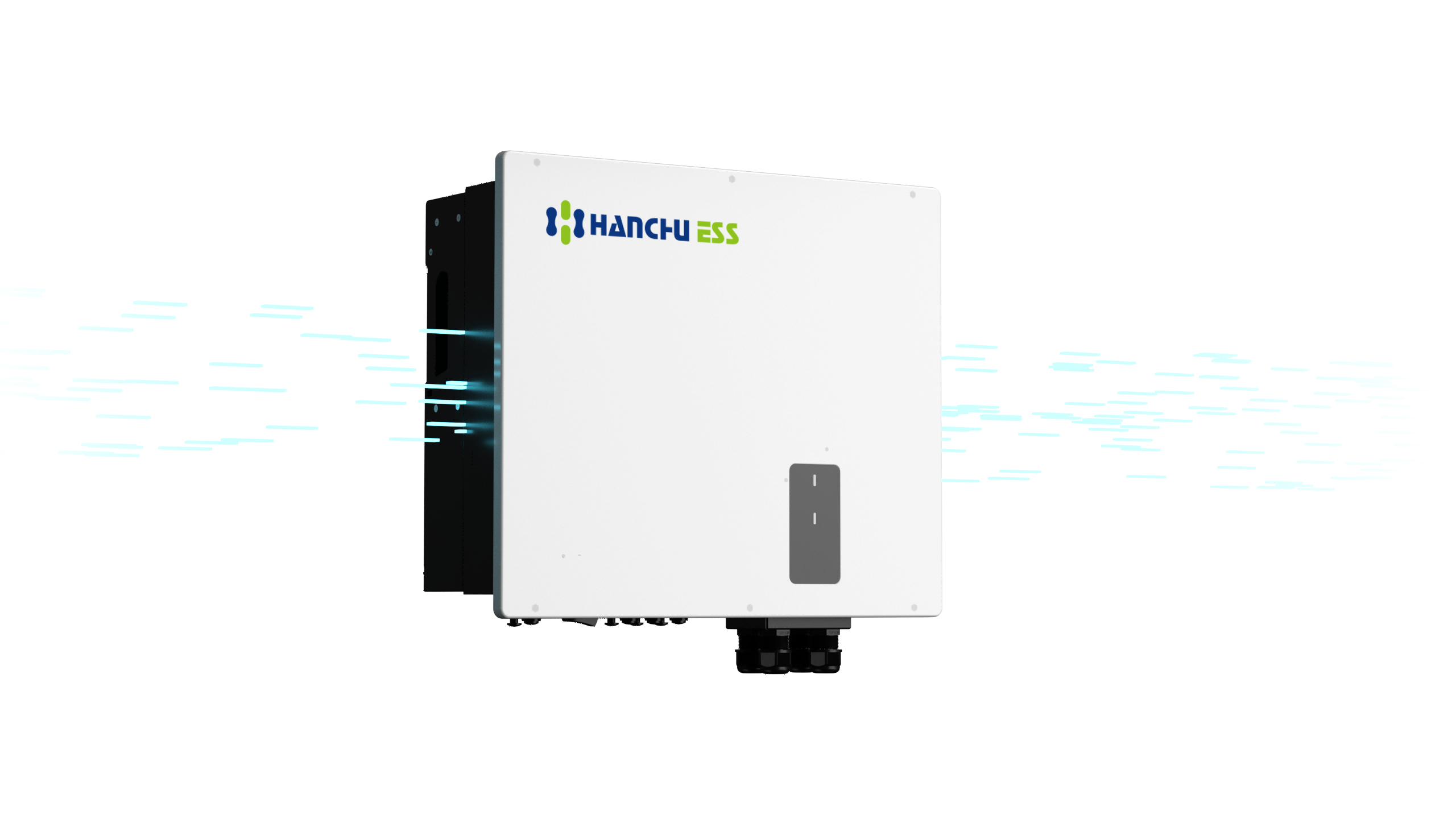

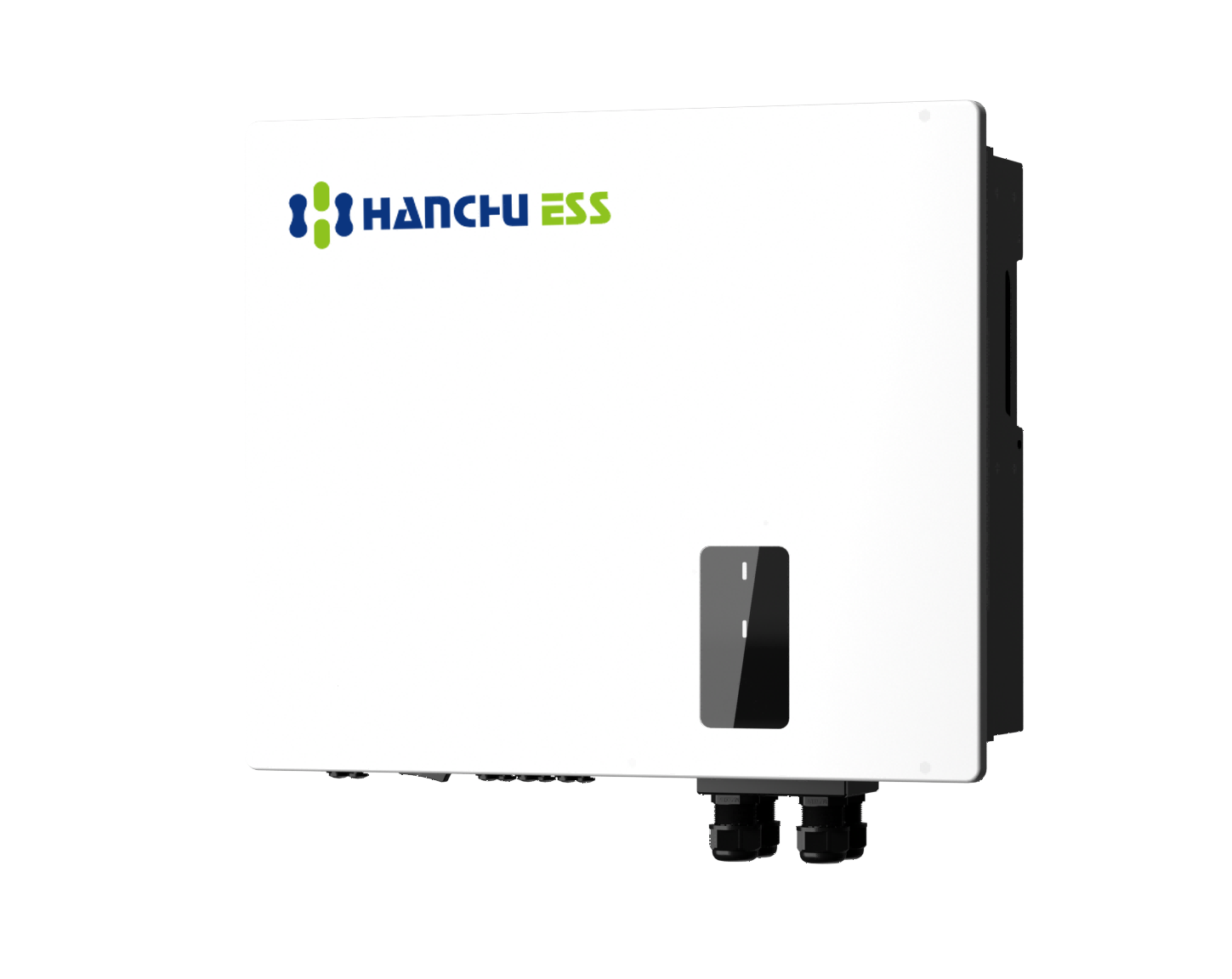

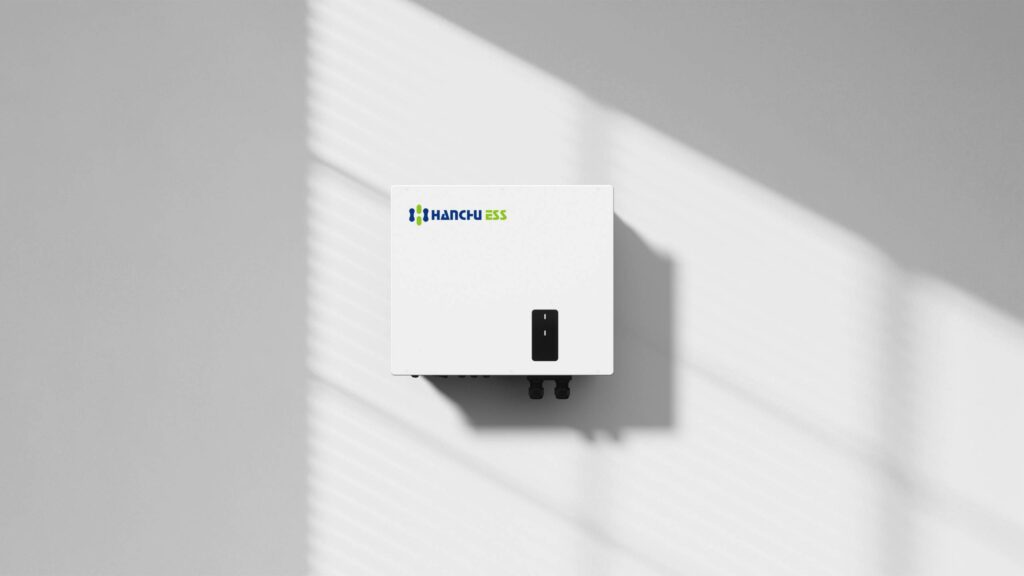

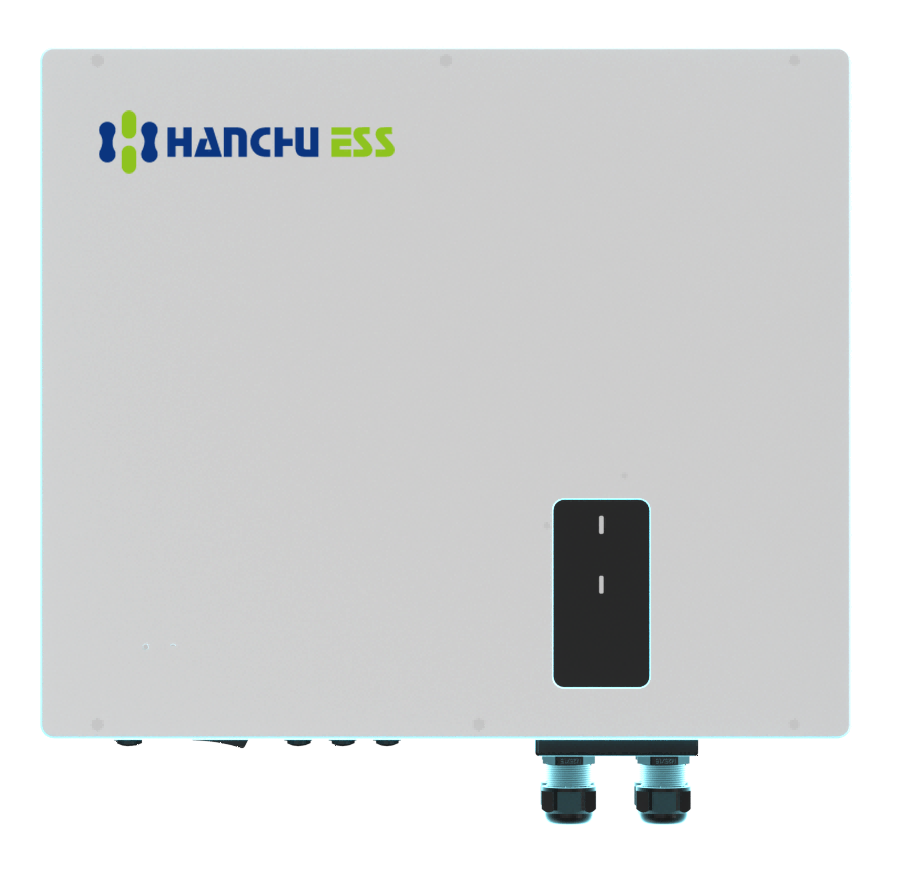

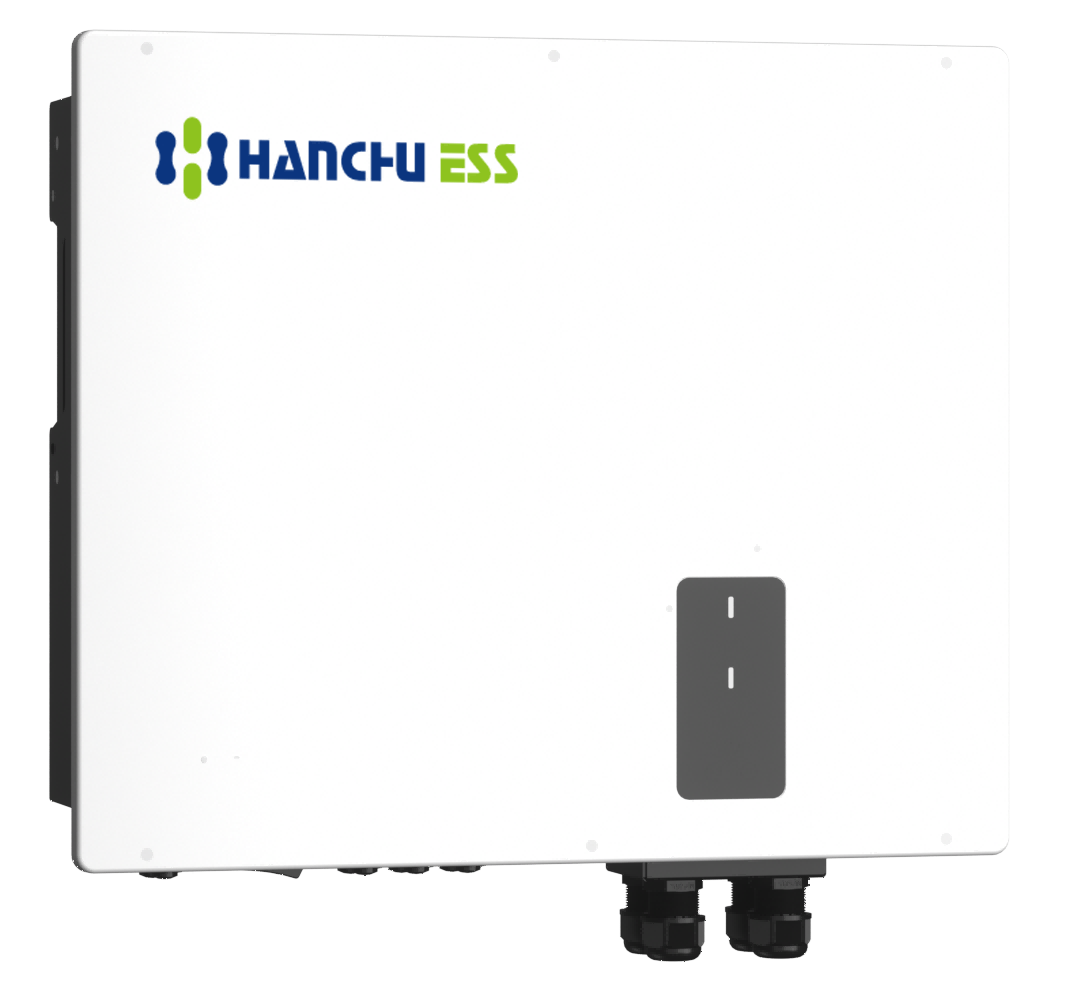

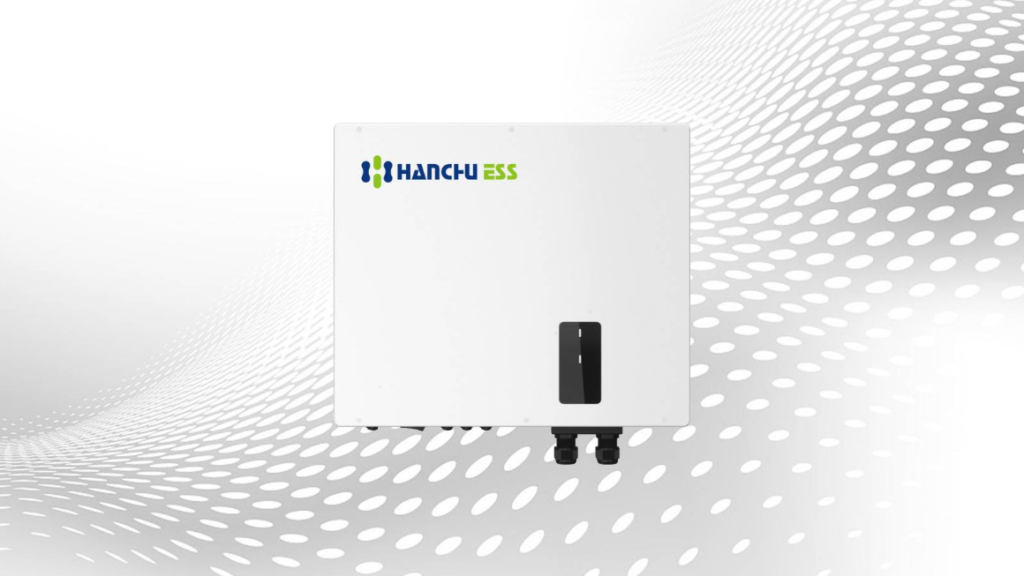

5-12kW Hybrid Inverter | Three Phase
Superior Performance
The HESS-HY-T series is a three-phase inverter specifically designed for residential homes. It supports multi-unit parallel operation and is perfectly compatible with the Hanchu HV series batteries, offering high-power energy output to provide stable electricity for loads.
2*20A Photovoltaic Input Current
It can simultaneously connect two photovoltaic arrays, each undergoing maximum power point tracking. With a 20A input current, it can handle larger capacity solar power generation systems, providing more stable and abundant electrical output.
100% unbalanced three phase AC output
It can better handle grid imbalances caused by load fluctuations, single-phase faults, and other issues, enhancing system stability.
UPS Switching in Less Than 10ms
Ensures the system swiftly and seamlessly switches to backup power in the event of a grid outage or other abnormalities.

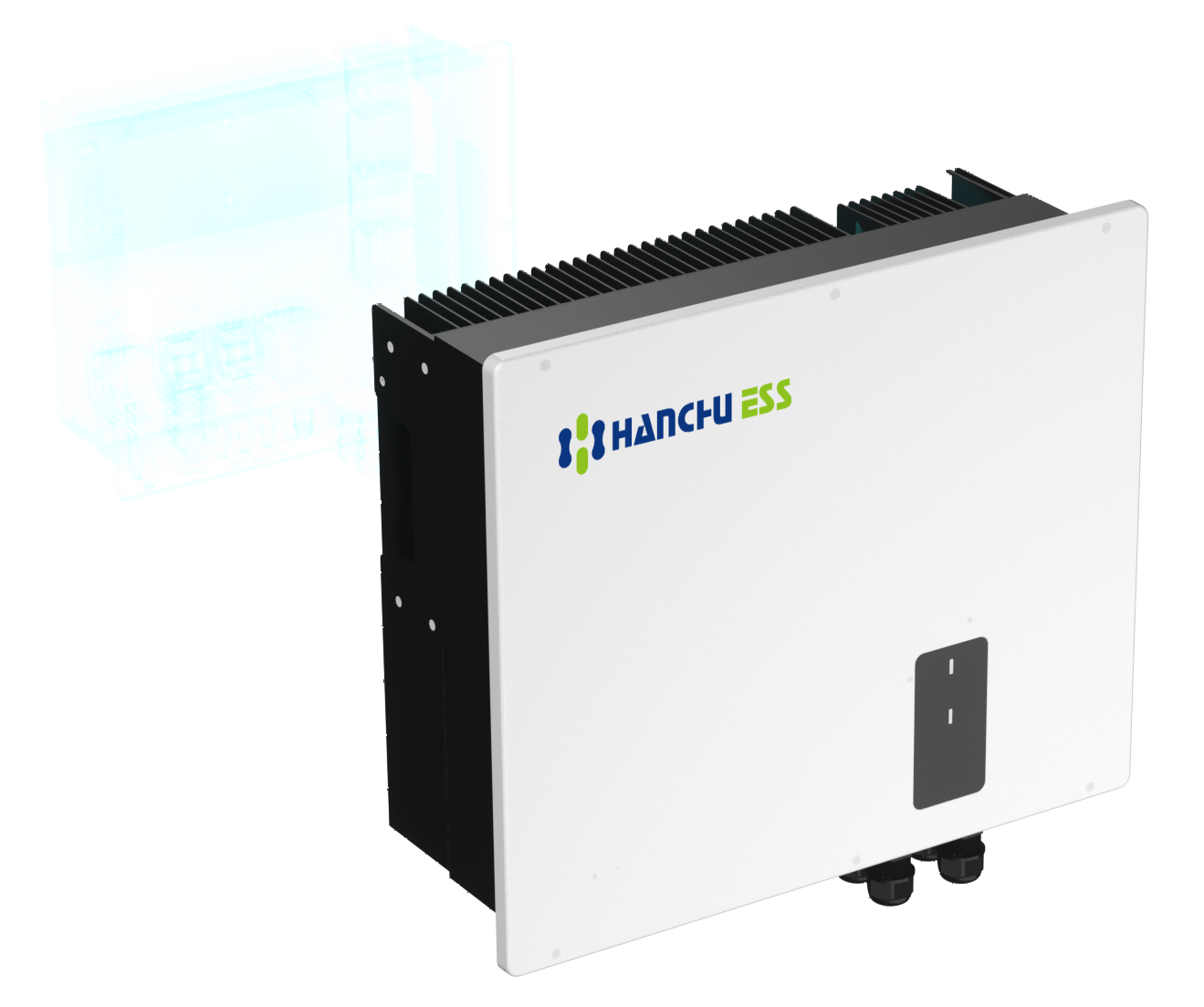

Ultra Safety
The design, manufacturing, and testing processes of the inverter strictly adhere to relevant safety standards, ensuring safety through international certifications and compliance with multi-country grid connection standards.
Multiple Protection Measures
Multiple protection functions including DC surge protection, insulation resistance detection, AC short circuit current protection, and anti-islanding protection, ensuring comprehensive safeguards for safe system operation.
IP66
Higher dust and water resistance levels, safe for outdoor use.
EMC complies with IEC standards
Electromagnetic radiation complies with IEC standards, is harmless to humans, and can operate stably without interference from other signal sources.
Hanchu Cloud Platform Integration
Operators and end-users can stay informed about the real-time operational status of the system, enabling remote scheduling, OTA upgrades, and historical data analysis. This functionality brings convenience to after-sales service.
Technical Specifications
Model
HESS-HY-T-05/06/08/10/12K
No. of independent MPPT / strings per MPPT
2 / 1
Battery voltage range
120V to 600V
Rated EPS output apparent power
5-12kVA
Ingree protection degree
IP66
MPPT voltage range / rated input voltage
150V to 950V / 630V
Max. input current per MPPT
20A
Rated AC input power from grid
10-24kW
Max. switch time
<10ms
Certificates
EN61000 / IEC62109 / EN50549 / VDE 4105 / VFR201 / G98/G99/G100
